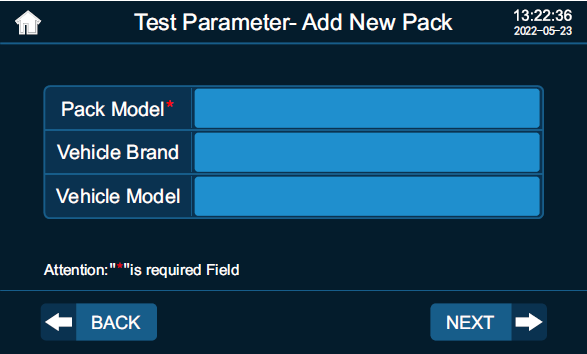

1. Input vehicle or battery pack information
Input battery pack model, vehicle brand and model.
2. Test parameters, configuration parameters
Pack Volume: 30 (default) L (2-200 optional)
Quick inflation Pressure 15 (default) kPa (1-30.00 optional)
Quick inflation Duration 60 (default)S (1-999 optional)
Intelligent Inflation Duration 300(default) S (1-999 optional)
Pressure Holding Duration 60 (default) S (1-100 optional)
Test Duration 60 (default) S (1-300 optional)
Target test pressure max :200 (default) Pa (50-500 optional)
Target test pressure min :200 (default) Pa (50-500 optional)
Target Pressure 5Kpa (0.50-30.00 optional)
Leakage Threshold:100(default)Pa (5-500 optional)

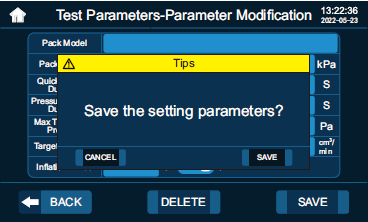

3. Parameter saving
Check the configured parameters carefully.
NOTE
The target test pressure parameter is the test standard value suggested by the vehicle manufacturers or the battery pack manufacturers. The wrong setting will cause the test result to be invalid. If the pressure exceeds the pressure of the battery pack itself, the battery pack will be swollen or damaged directly!
